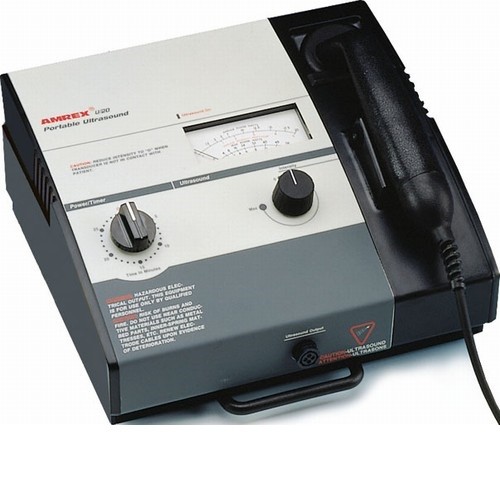

Amrex Portable Ultrasound Unit U-20

The widely used therapeutic modality of ultrasonic diathermy is provided by the SynchroSonic U/50.Ultrasound may be applied separately through the ultrasound transducer or combined simultaneously using an external electrical stimulator such as the Amrex MS324A for combination therapy. The new Cable Fault Alarm system detects improper transducer connection and/or cable damage providing a safety shutdown feature.

Features

• Lightweight standard transducer
• Optional Quickconnect transducer
• Optional small transducer w/ Quickconnect Cable
• Cable fault alarm system U/50
• Transducer protection switch U/50
• Adjustable interrupted output mode U/50
• 0 to 20 watt output U/50
• 0 to 12 watt output U/20
• 30 minute timer

Specifications:

• Input Power Requirements: Line Voltage: 120 VAC, 60 Hz. Current: 1.0 A. Line Leakage: Less than 50 µA.
• Frequency: 1.0 MHz ± 5%.
• Waveform: Amplitude modulated at 120 Hz ± 1%.
• Pulse Duration: 8 ms ± 1%.
• Output Mode: Non-interrupted.
• Output Power: 0 to 12 W total ± 20% / 0 to 3 W/cm2 ± 20%.
• Temporal Peak/Temporal Average Intensity: 2.8:1 ± 20%.
• Treatment Timer: Adjustable 0 to 30 minutes.

Applicator (Transducer):

• Crystal Material: Barium-titanate.
• Applicator Beam Type: Collimating.
• Frequency: 1.0 MHz ± 5%.
• ERA (Effective Radiating Area): 4 cm2 ± 20%.
• BNR (Beam Nonuniformity Ratio): 5.5:1 maximum.

• Overall Dimensions: 11.5" W x 11.0" D x 7.0" H.
• Weight (with Transducer): 12 lbs.
• Shipping Weight: 17 lbs.

Ordering:

U20-ST: U/20 Portable Ultrasound with standard transducer
U20-STQC: U/20 Portable Ultrasound with standard QuickConnect transducer
U20-SMT: U/20 Portable Ultrasound with small QuickConnect transducer
U20-BQCT: U/20 Portable Ultrasound with both QuickConnect transducers
