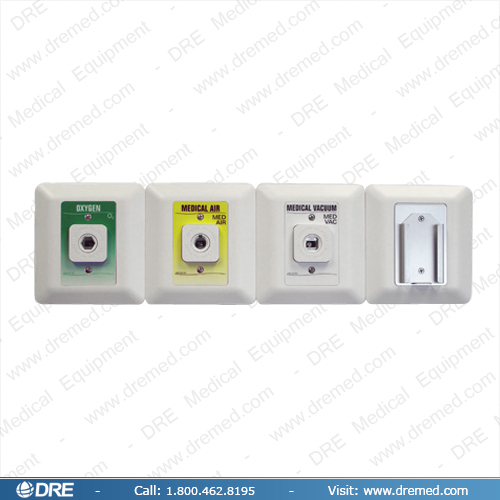

Puritan Quick Connect Recessed Outlets
0 items are in your cart. View cart now.
Need Advice? Ask Our Experts!
(800) 462-8195
Description
- ETL Listed to UL 1331 and CSA Z9170-1
- Conforms to NFPA 99 and CGA standards
- Accepts Puritan Bennett gas specific compatible male adaptors
- Compensates for variation in wall thicknesses from 1”
- Gas specific indexing
- Modular design
- 5” centers
- All outlets are 100% tested for flow and leaks
- Nameplate color coding per NFPA 99
- 360 swivel inlet tube
- Made in the U.S.A.
Specifications
General
- Modular, single quick connect medical gas outlets
- Color-coded in accordance with NFPA 99
- Gas services sequentially arranged and located as shown
- Minimum centerline spacing of 5” (12.5 cm) between outlets
- Primary check valve can be removed for service without shutting off gas supply
- Secondary check valve operates automatically to stop the free flow gas
- No secondary check for Medical Vacuum and WAGD services
- Double O-ring seal between nameplate and rough-in
- Seal is serviceable without shutting off the gas service, is capable of supporting 10 lbs. at 2” from the nameplate without leaking
- Scratch-resistant, durable coating to label and trim
- Rough-in supply tube measures 7” (18 cm) in length of ½ O.D. copper Type K
- Service in accordance with current CGA Pamphlet G-4.1
- To be used in conformance with local and federal codes
Product Options
| Oxygen Male Puritan Bennett Quick Connect Recessed Outlet | |
| Medical Air Male Puritan Bennett Quick Connect Recessed Outlet | |
| Nitrous Oxide Male Puritan Bennett Quick Connect Recessed Outlet | |
| Medical Vacuum Male Puritan Bennett Quick Connect Recessed Outlet | |
| Evacuation Male Puritan Bennett Quick Connect Recessed Outlets |
